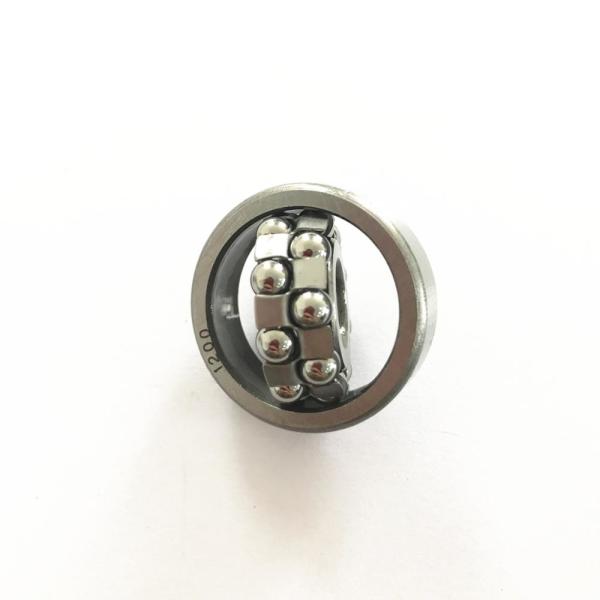

High Speed Self Agligning 2200K Industrial Bearings

  • 1
  • 2

Brand Name : CSC

Model Number : 2200K Series

Certification : AS9100,IATF16949,ISO9001,ISO14001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Negotiation

Delivery Time : Negotiation

Packaging Details : Industrial Packing/Single box Packing

Product Name : Self Agligning Ball Bearings

Precision Rating : P0,P6,P5,ABEC 1, ABEC 3,ABEC 5

Bore Size : 17mm-90mm

Cage : Steel Retainer,Nylon Retainer, Brass Retainer

Seal Type : Open,2RS,ZZ

Lubricated : Oil,Grease

Vibration : Z1,Z2,Z3,V1,V2,V3

Clearance : C0,C3

Precision rating : P0 P6 P5 P4 P2

Material : Chrome Steel,carbon steel

Feature : High Speed,Long Life,Low Noise

Supply Ability : Negotiation

Contact Now

Self Agligning Ball Bearings 2200K Series Open/2RS/ZZ P6 P5 High Speed

Key Feature

CSC can produce high quality Self Agligning Ball Bearings as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters

Note:2000K Series can be supplied with sleeves.

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed.

The bearings are insensitive to angular misalignment of the shaft relative to the housing

Product Specification

Bearing No. Boundary Dimensions(mm) Basic Load Rating(kN) Speed Rating(r/min) Weight (kg)
Tapered Bore d D B rsmin Cr Cor Grease lubrication Oil lubrication
2203K 17 40 16 0.6 9.9 2.42 16000 20000 0.085
2204K 20 47 18 1 12.8 3.3 14000 17000 0.133
2205K 25 52 18 1 12.4 3.45 12000 14000 0.15
2206K 30 62 20 1 15.3 4.55 10000 12000 0.25
2207K 35 72 23 1.1 21.7 6.6 8500 10000 0.38
2208K 40 80 23 1.1 22.4 7.35 7500 9000 0.48
2209K 45 85 23 1.1 23.3 8.15 7100 8500 0.52
2210K 50 90 23 1.1 23.3 8.45 6300 8000 0.56
2211K 55 100 25 1.5 26.7 9.9 6000 7100 0.75
2212K 60 110 28 1.5 34 12.6 5300 6300 1.03
2213K 65 120 31 1.5 43.5 16.4 4800 6000 1.4
2214K 70 125 31 1.5 44 17.1 4500 5600 1.52
2215K 75 130 31 1.5 44.5 17.8 4300 5300 1.6
2216K 80 140 33 2 49 19.9 4000 5000 1.98
2217K 85 150 36 2 58.5 23.6 3800 4800 2.5
2218K 90 160 40 2 70.5 28.7 3600 4300 3.14

Precision Rate P0,P6,P5,ABEC 1,ABEC 3,ABEC 5
Vrbration Z1,Z2,Z3,V1,V2,V3
Bore Size 10mm-300mm
Cage Steel Retainer,Nylon Retainer
Seal Type Open,2RS,ZZ
Lubricated Oil,Grease
Clearance C0,C3

Application

  • Logistic Transport Facilities

  • Automation Technology

  • Machine Tools

  • Aerospace Industry

  • Mechanical Engineering

  • Industrial Robots

  • Textile Machinery

  • Automotive Industry

  • Construction Machinery

  • Electric Motors

  • Gearboxes

Selection Of Bearings

Our team of specialists from the German rolling bearing industry supports you by stress analyzes and calculations in the selection of the right bearings.

  • Stress Analyzes

  • Storage and Durability Calculations

  • Design advice for "non-standard bearings"

  • Selection of Greasing

  • Quality Analysis

  • Damage Analysis

Details

Packing

Paper box,Carton,Wooden Pallets,According to the requirements of clients

a) Plastic tube+ Carton+ Pallet

b) Plastic Bag+ Kraft Paper+ Carton+ Pallet

Commercial Packing

Plastic Bag+ Color Box+ Carton+ Pallet

Delivery

3-30 days after order of Solid bicycle tire tubes

FAQ:
Q: Can you print our logo on the bearings?
A: yes we can

Q: Why do we choose your company?
A: Our company has been a professional bearing manufacturer for more than 10 year. We pay more attention to quality. For each shipping, there are professionalists to check quality of products.

Q: What is the delivery time?
A: We have stock for most of the bearings. For small quantity, we will arrange delivery about 1-5 days,if you need Urgently,please confirm them with us.

Q: What is your payment term?
A: Our payment term include Alipay,T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.

Q: What is your MOQ?
A: For common bearing model number, our MOQ is 1pc.

If you are interested in any model, please feel free to contact with me!
