Axial Angular Contact Ball High Precision Bearings ZKLF ZKLN Series

Brand Name : CSC

Model Number : ZKLF1255 ZKLF2068 ZKLF3080

Certification : AS9100,IATF16949,ISO9001,ISO14001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Negotiation

Delivery Time : Negotiation

Packaging Details : Industrial Packing/Single box Packing

Product Name : Deep Groove Ball Bearings Super Thin Series

Precision Rating : P0,P6,P5,ABEC 1, ABEC 3,ABEC 5

Vibration : Z1,Z2,Z3,Z4,V1,V2,V3,V4

Bore Size : 10mm-150mm

Cage : Steel Retainer,Brass Retainer,Nylon Retainer

Seal Type : Open,2RS,ZZ,2RSE,2RZ,N,NR,RS,Z

Lubricated : Oil,Grease

Clearance : C0,C2,C3,C4,C5

Contact Now

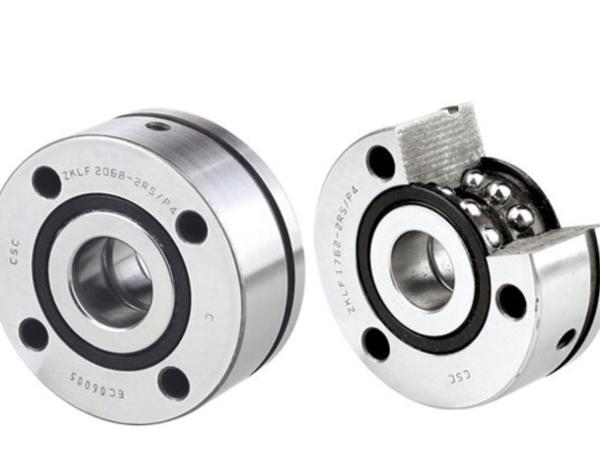

Axial Angular Contact Ball Bearings ZKLF ZKLN Series

Features

High load carrying capacity, high rigidity, high preload capability.

Relubration is possible via radial and an axial threaded hole.

ZKLF 2RS series can be forced from both sides with heavy load, with high rigidity and low cross section. Due to these elements, ZKLF 2RS miss all the accuracy requirements of modern precision machine. The bearings don't need any set parts and adjustment during fitting because of flange.

The lubrication holes are sealed by countersunk bolt and in order to dismount easily there has a groove on the surface of outer ring.

ZKLF Series are preloaded internally. Through special processing, they can be used in matched pairs, please indicate the matching code 2AP when placing the order.

ZKLN Series are preload internally. Through special processing, they can be used in matched pairs, please indicate the matching code 2AP when placing the orders.

Product Specification

Precision Rating

P4,P2,ABEC 7, ABEC 9

Contact Angle

15° (C),18°(D),25°(AC)

Bore Size

10mm-300mm

Cage

Nylon Retainer TN ,Phenolic Retainer TA

Ball Material

Steel Ball, Ceramic Ball

Seal Type

Open,RZ,2RZ

Lubricated

Oil,Grease

Arrangement

G,DB,DF,DT,TBT,TFT,QBC,QFC

Preload

Light(A),Medium(B),Heavy(C),Special(G)

Application

  • Machine Tools

  • Aerospace Industry

  • Industrial Robots

Selection of Bearings

Our team of specialists from the German rolling bearing industry supports you by stress analyzes and calculations in the selection of the right bearings.

  • Stress Analyzes

  • Storage and Durability Calculations

  • Design advice for "Non-standard Bearings”

  • Selection of Greasing

  • Quality Analysis

  • Damage Analysis

Details

Packing Paper box,Carton,Wooden Pallets,According to the requirements of clients
a) Plastic tube+ Carton+ Pallet
b) Plastic Bag+ Kraft Paper+ Carton+ Pallet
Commercial Packing Plastic Bag+ Color Box+ Carton+ Pallet
Delivery 3-30 days after order of Solid bicycle tire tubes

FAQ:
Q: Can you print our logo on the bearings?
A: yes we can

Q: Why do we choose your company?
A: Our company has been a professional bearing manufacturer for more than 10 year. We pay more attention to quality. For each shipping, there are professionalists to check quality of products.

Q: What is the delivery time?
A: We have stock for most of the bearings. For small quantity, we will arrange delivery about 1-5 days,if you need Urgently,please confirm them with us.

Q: What is your payment term?
A: Our payment term include Alipay,T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.

Q: What is your MOQ?
A: For common bearing model number, our MOQ is 1pc.

If you are interested in any model, please feel free to contact with me!
